Pet food machine produces high-quality, nutritious pet food in various shapes/sizes. Ideal for pet food factories, dog treat makers, and commercial manufacturing. Ensures efficiency, consistency, and safety.
Key attributes：
application：cat, dog, fish
Core component：motor
Place of origin：Henan, China
Weight：3000
Warranty ：1 Year
Brand name：METHENA
Voltage：220v/380v customized
Control system： PLC
Type：Double Screw Extruder Machine
Capacity ：1000-2000kg/h
OrangeMech/METHENA's pet food machine is a highly efficient Pet food machine, designed for dog food manufacturing and commercial dog treat making enterprises. It can produce uniform-sized, nutritious particles to ensure the health of pets. Suitable for Pet food machines, it has the characteristics of durability, energy saving, and easy operation.

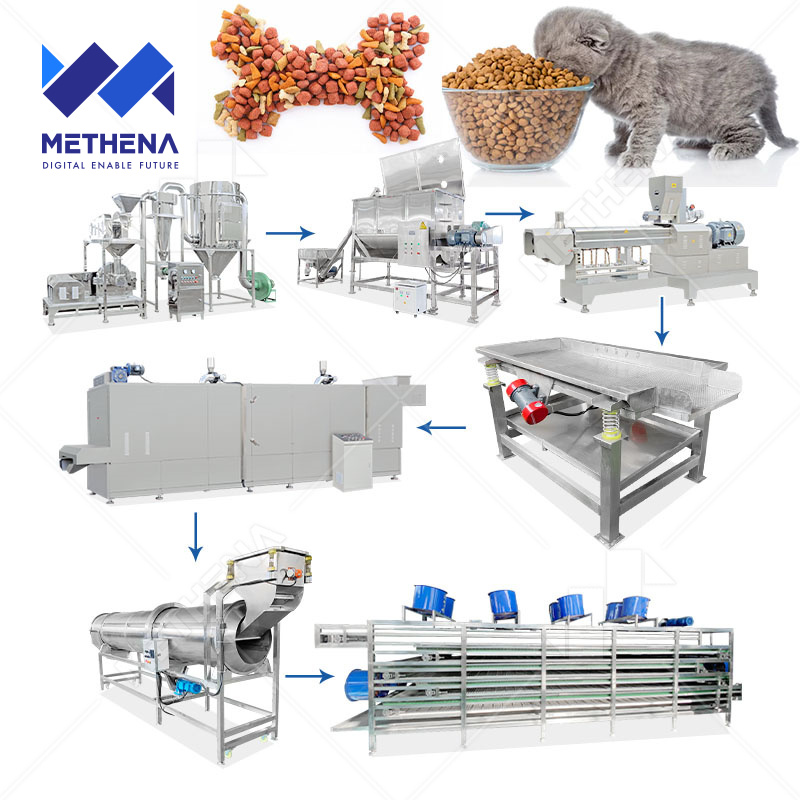

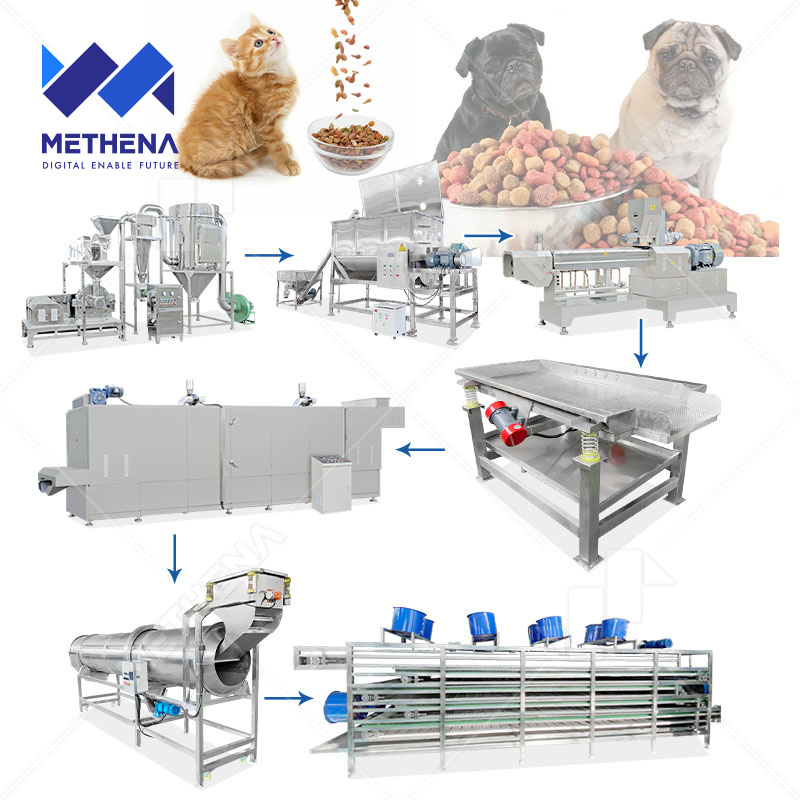

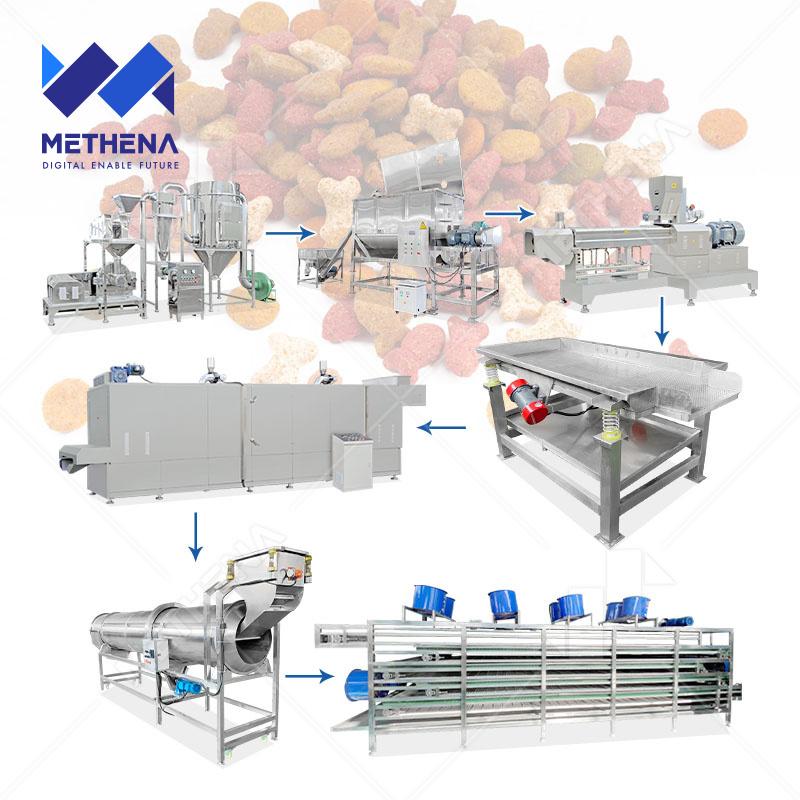

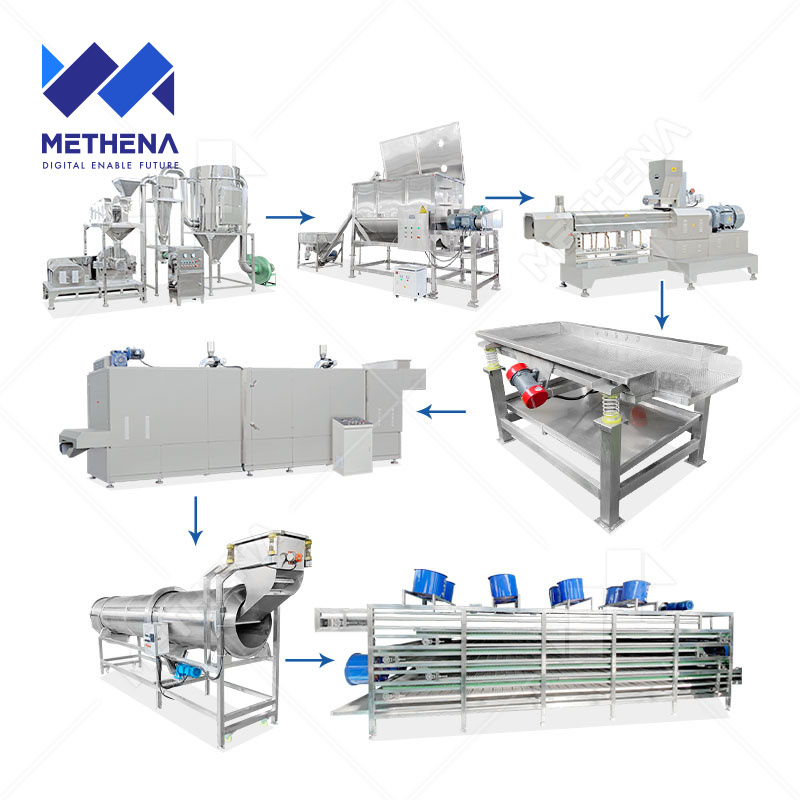

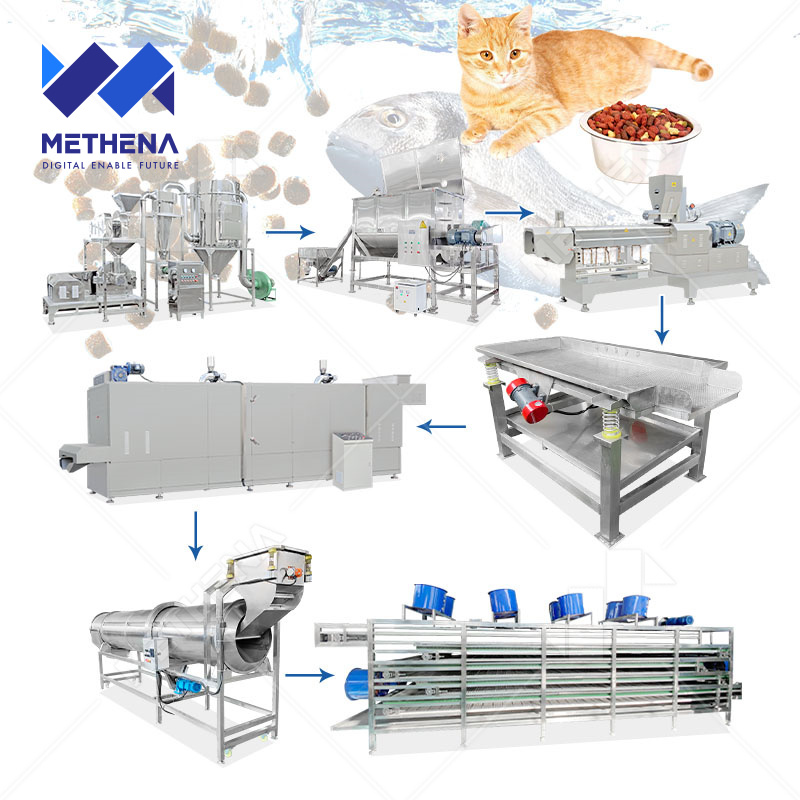

They complete the entire process of raw material crushing, mixing, extrusion puffing (or vacuum filling), drying, oil spraying and seasoning, cooling, sieving, and packaging on one or more units. They are characterized by high automation, large capacity, flexible formulations, and uniform nutrition, meeting the continuous production needs of pet food factories, feed mills, and breeding cooperatives.
Parameter：
Machine name | Power | Capacity | Dimension |
Dust-free pulverizer | 75kw | 2T/H | 5000*6000*4000mm |

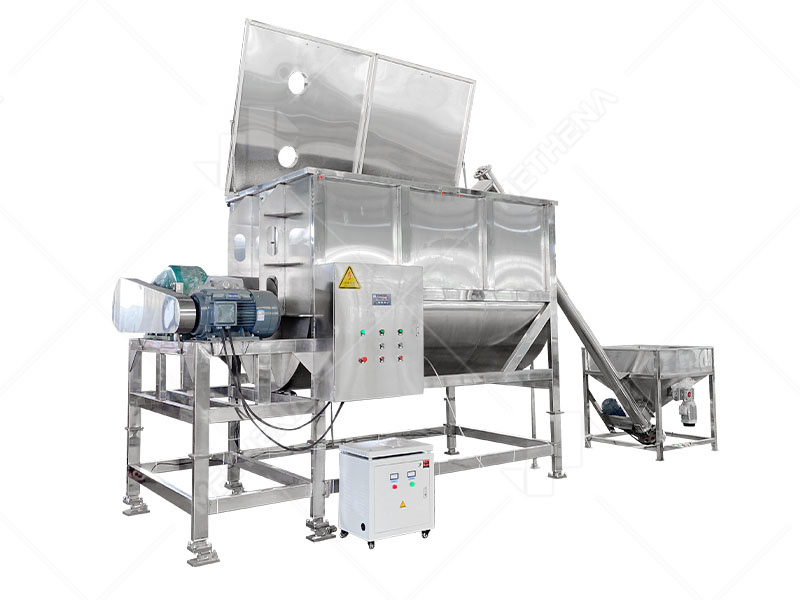

Powder mixer | 11KW | 600kg-800kg/batch | 2700*1200*1900mm |

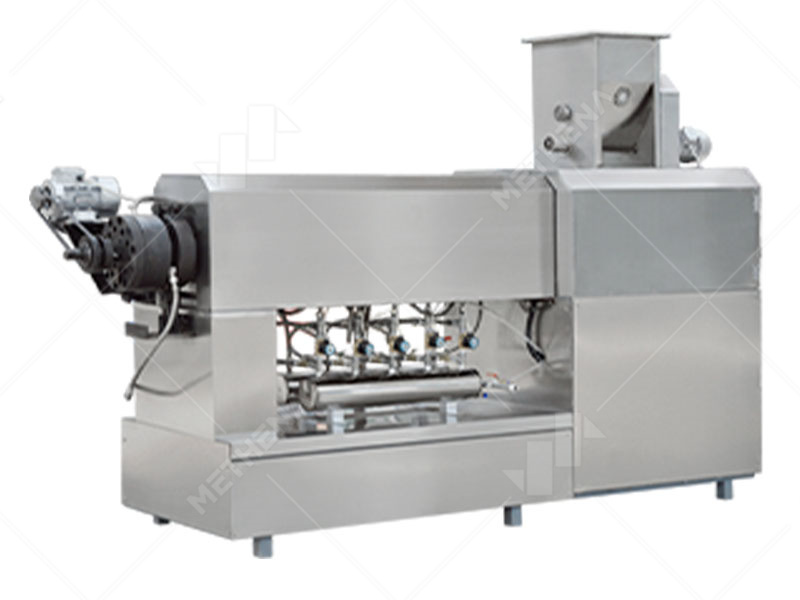

Puffing machine | 110KW | 2T/H | 6568*1250*2370mm |

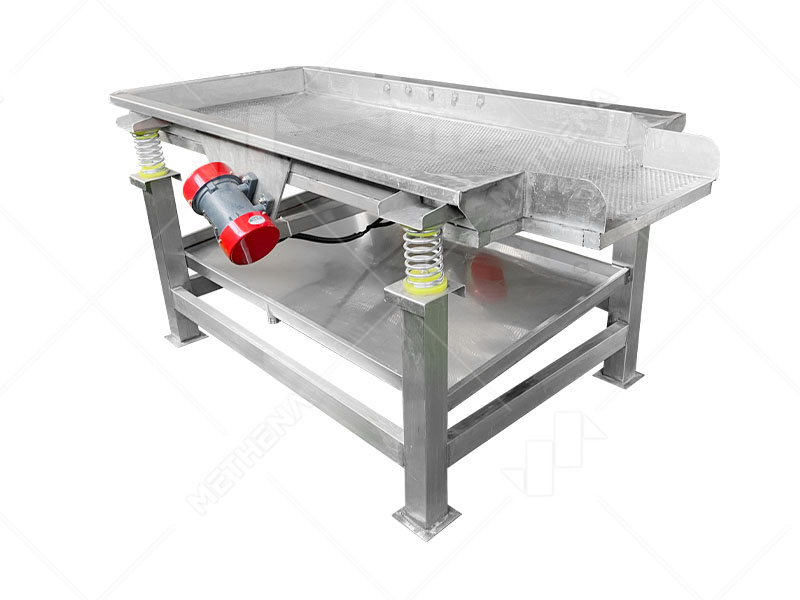

Vibrating screen | 1.5KW | 2000*1200*800mm | |

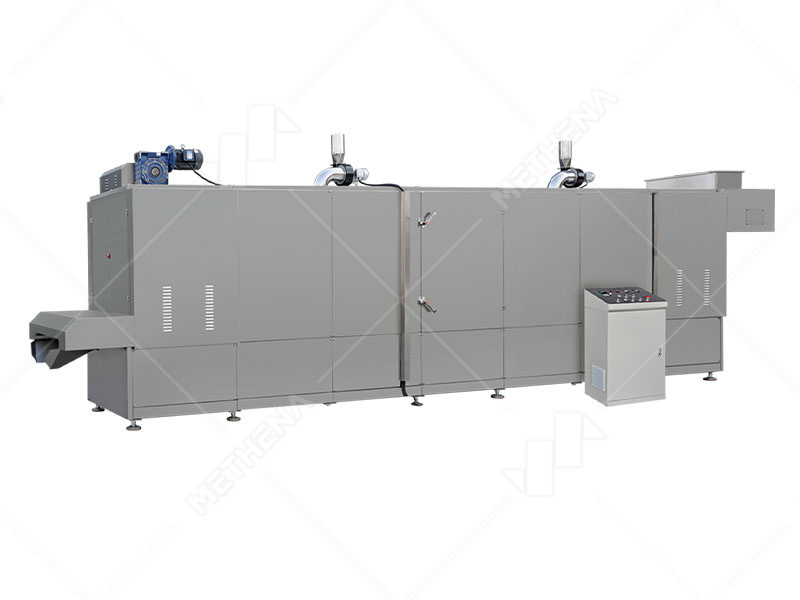

Multi-layer dryer | 30KW | 300KG/H | 11000*1600*6000mm |

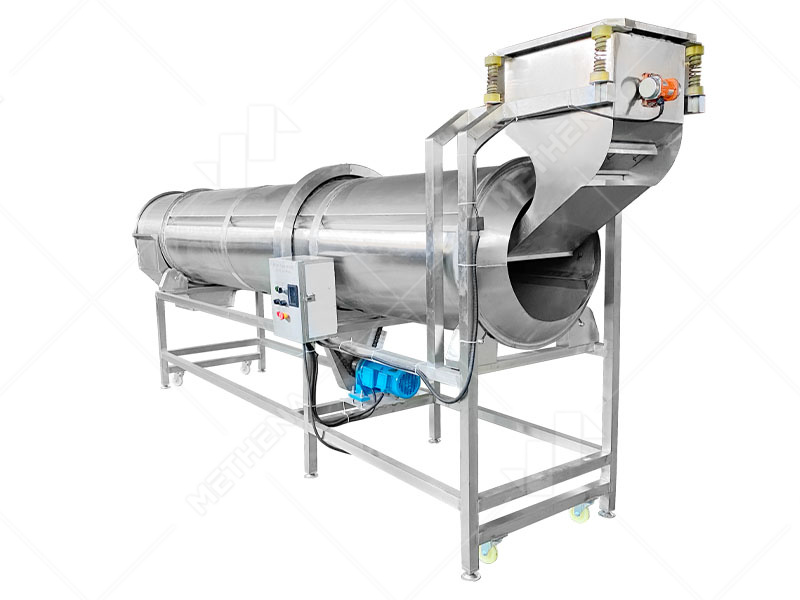

Drum mixer | 3.8KW | 0-6L/min | Φ650*3450mm |

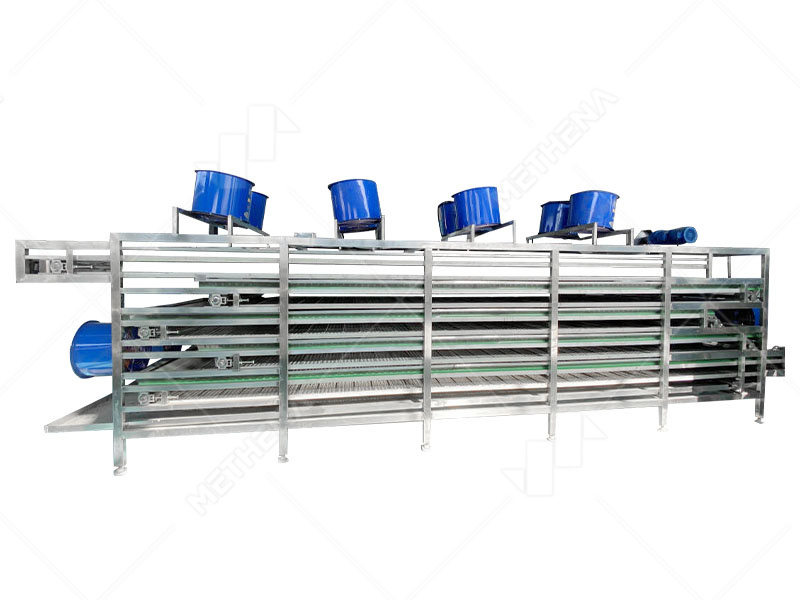

Cooling belt | 4kw | 6000*900*1600mm |
Grinding → Raw material particle size 40-60 mesh, improving uniformity of cooking.
Mixing → Add meat powder, oil, and premix according to the formula, moisture 18-22%.
Extrusion → Twin-screw high-speed shearing + steam injection, instantaneous gelatinization of starch at 120-180℃, killing harmful bacteria such as Salmonella.
Shaping → Melted dough passes through die holes, and a rotating cutter cuts it into the required length and shape.
Drying → Multi-layer mesh belt oven 90-110℃, moisture reduced to 8-10%, improving shelf life.
Oil Spraying and Seasoning → Oil + hydrolyzed animal pulp atomized spray, improving palatability and energy density.
Cooling + Sieving → Cooled to 25℃ by ambient air, powder removed before entering the packaging machine.
Precise extrusion: OrangeMech's dog food pellet machine uses twin-screw extrusion technology to ensure that the size and shape of the extruded pet pellets are consistent, and the density is also highly consistent. There will be no uneven punching, and the finished pellets have a smooth surface and a tight structure, meeting the production standards of high-end pet food.
Multifunctional application:Cat food, fish food and other pet snacks can be produced by replacing the mold and process parameters. The intelligent control system can control the addition of raw materials to ensure the balance of the nutritional components of the pellets. The double-helix design can handle high-protein formulas efficiently without clogging, and one machine can be used for multiple purposes.
Low energy consumption design:Energy consumption is reduced by more than 20% compared with traditional models, reducing the waste of electricity and heat energy, and meeting CE certification. The noise is reduced by 30% decibels compared with traditional models, meeting environmental protection and energy-saving standards, saving you energy expenses.
Pet Food Factory - Large-Scale Production of Cat and Dog Food Professional-grade pet food puffing production line, equipped with fully automated control system, can continuously and stably produce various types of puffed cat and dog food 24 hours a day, with high-efficiency daily production, meeting the mass production needs of large pet food companies.
Commercial Dog Snack Machine - High-Quality Pet Snacks Made of food-grade stainless steel, precise temperature control system, can automatically mix raw materials to control the nutritional content of multiple types of pet pellets, the finished pellets are beautiful in appearance and rich in nutrition, suitable for high-end pet snack brands.
Farms and Breeding Farms - Nutritious Animal Feed Pellets Designed for livestock and poultry breeding, it can process various raw materials into high-density nutritious pellets, improve feed conversion rate, and reduce breeding costs. It is suitable for the feed production needs of different breeding farms such as pigs, chickens, and cattle.
Q: How much space does a 500 kg/h extruded dog food production line occupy? What is its power consumption?
A: The standard layout is approximately 24 m long × 5 m wide × 6 m high; total installed power ≈ 110 kW (including crushing, drying, and refrigeration), actual operating load 70-75 kW.
Q: What is the maximum amount of fresh meat that can be added?
A: A twin-screw extruder with a vacuum premixer can add up to 40% fresh meat/offal while maintaining good pellet formation, without scorching or oil leakage.
Q: How long does it take to change the formula?
A: The PLC can store 50 formulas, with parameters recalled with a single button; physical cleaning (self-cleaning + idling) takes approximately 15 minutes, after which a new formula can be switched.
Q: What are the commonly worn parts? What is their lifespan?
A: Screw bushings, die cutters, and bearing seals; bushings last approximately 1 year with continuous operation (replace when wear exceeds 2 mm), die cutters every 6-8 months, accounting for 3-5% of the total machine cost.
