Easy to operate, all parameters can be adjusted, convenient and fast

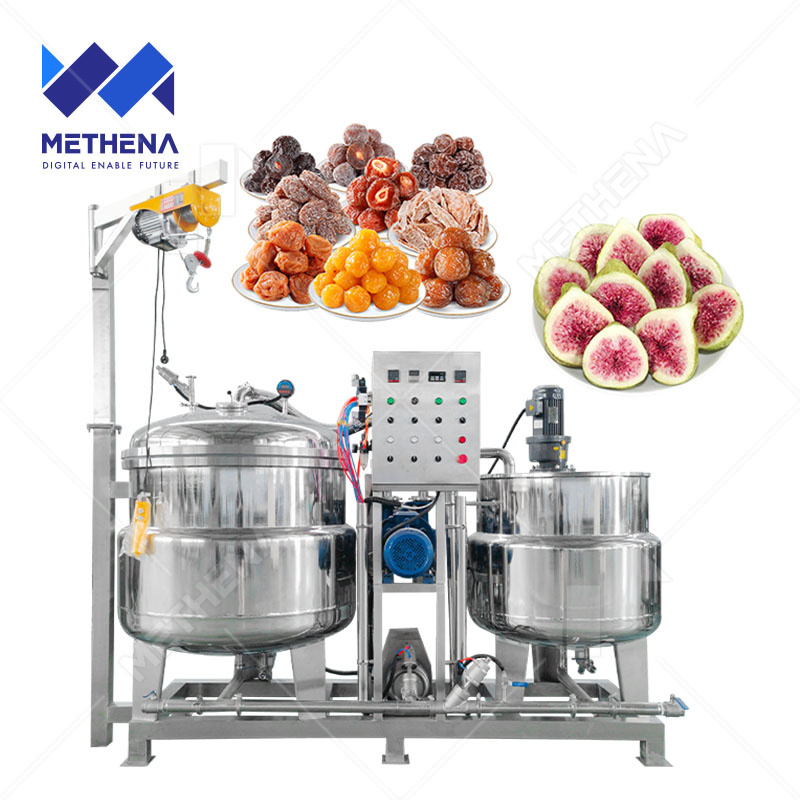

Vacuum sugar dipping tank is a key equipment to help you in the field of food processing. It mainly focuses on the permeation syrup system of desserts, which not only improves the taste but also increases the color and retains protein. The vacuum technology of MEHENA's Vacuum Sugar Dipping Pot makes the sugar dipping process more thorough and uniform. The corrosion-resistant 304 stainless steel material that meets the national health implementation standards makes the finished product not only hygienic but also of high quality after sugar dipping. It is suitable for large-scale baking industry and fine fruit processing production.
Condition:New
Weight: 220
Warranty :1 Year
Key Selling Points : Multifunctional
Place of origin: Henan, China
Brand name: METHENA
Voltage :380V 50HZ customized
Dimension(l*w*h): 2500*1430*1550mm

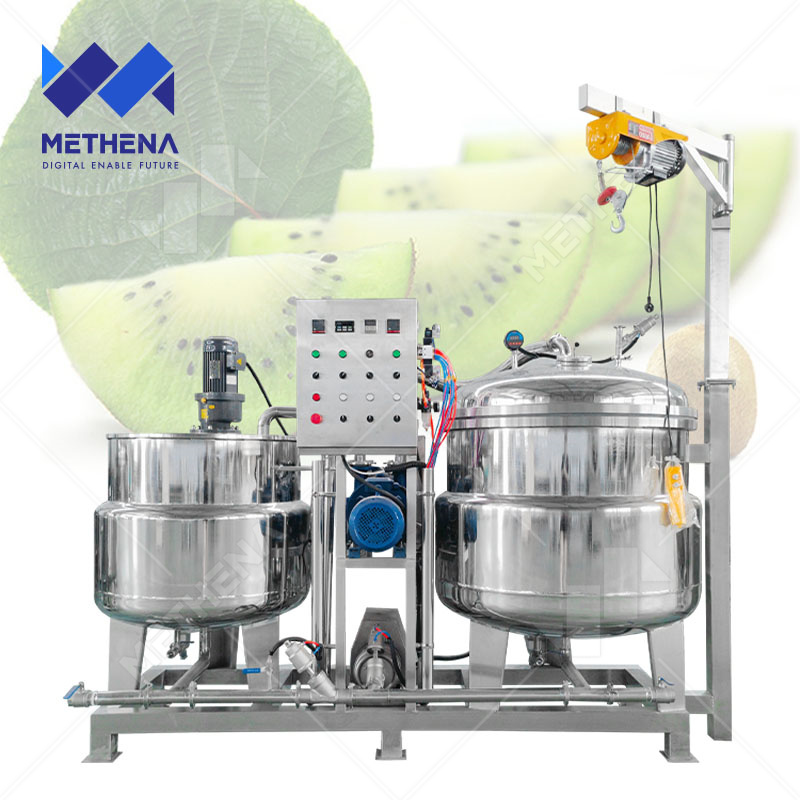

Product name :Vacuum Sugar Soaking Machine
The vacuum sugar dipping pot is mainly used to penetrate the melted sugar liquid into pickled food under vacuum state. It is mainly used for the production of candied fruits, nuts, etc. It can not only improve the taste and flavor of food, but also improve production efficiency and reduce energy. It can also customize the working time automation design to help your candied fruit business.
Specification：
Inner diameter/depth of sugar soaking machine | Φ800mm / 600mm |
Capacity | 100-150kg/pot |
Heating power of sugar pot | 24kw |
Sugar cooking pot power | 1.5kw |
Vacuum pump power | 4kw |
Power voltage | 380V 50HZ customized |
Total installed power | 54kw |
Dimensions | 2500*1430*1550mm |

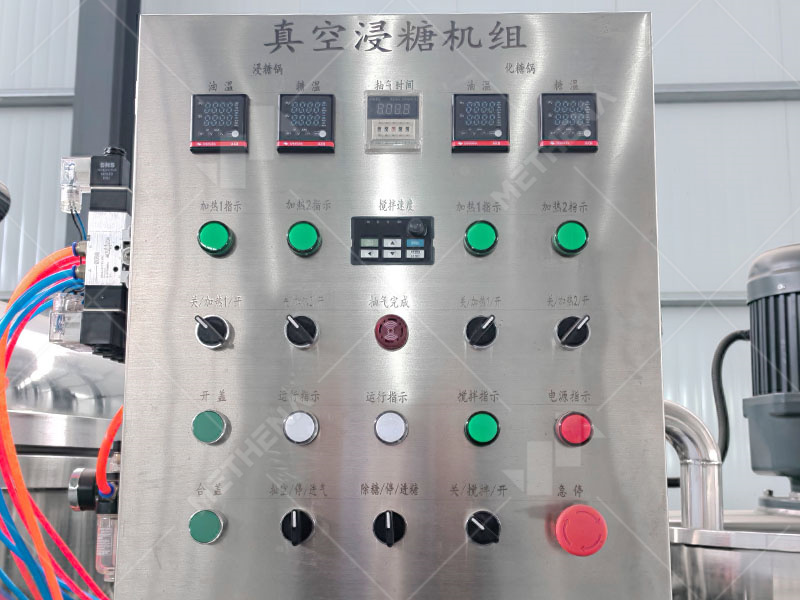

Control panel
Easy to operate, all parameters can be adjusted, convenient and fast

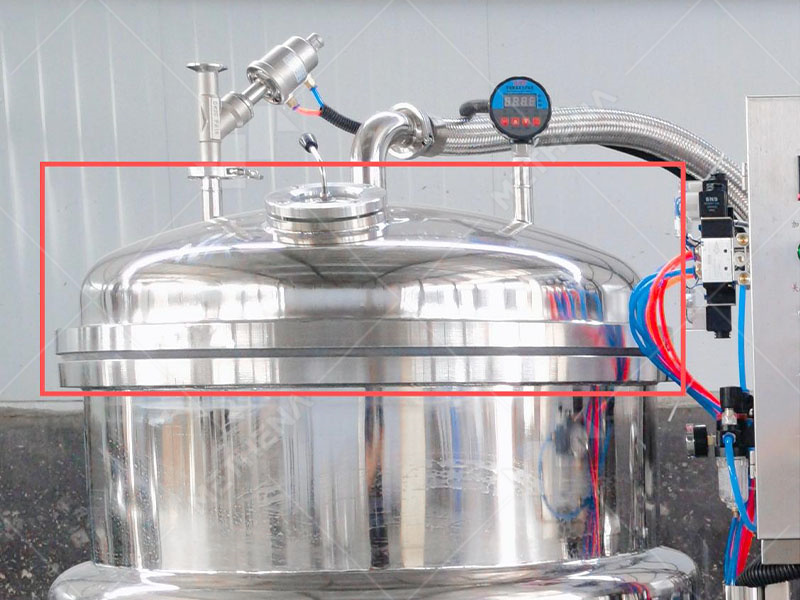

Thickened sealing ring
Enhance sealing and improve production efficiency

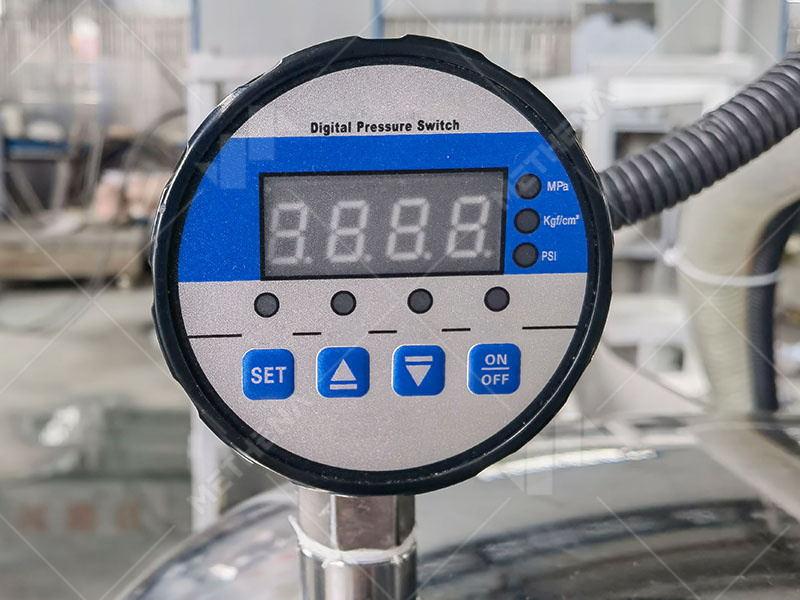

Pressure controller
Displays digital, low pressure or high pressure with reminder, ensures consistency of sugar dipping effect

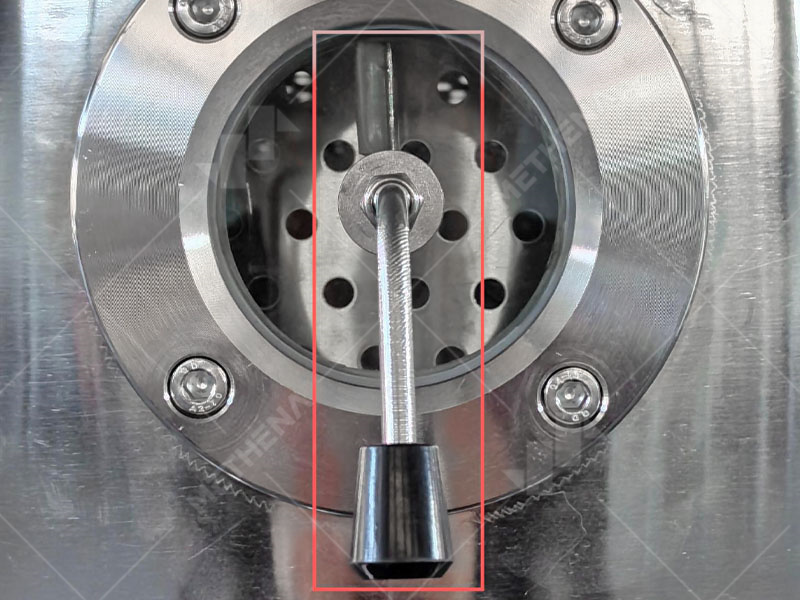

Observation hole
With a scraper, it is convenient to observe the situation in the sugar dipping pot.

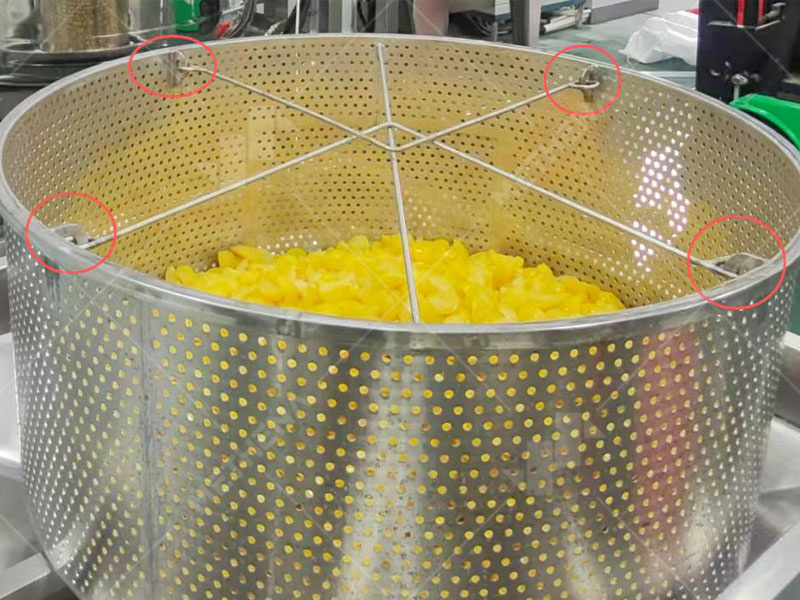

Material basket
Hollow design ensures that the material is fully dipped in sugar, which is convenient for material loading and unloading and cleaning

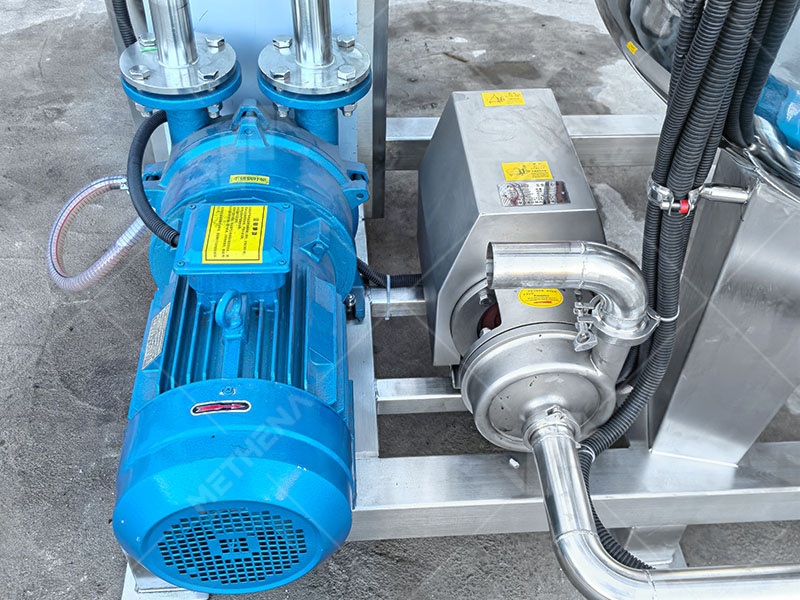

Sugar pump
Sugar liquid can be recycled, has a filtering effect, and prevents sugar liquid contamination.
High degree of automation:simple interface, easy operation.
Sturdy and durable: the pot body is made of 304 stainless steel, and the frame is made of 201 stainless steel
Strong sealing: the bubble sugar pot has a thickened flange + sealing ring design to enhance sealing and improve production efficiency
Candy processing factory: used for sugar coating of various hard candies, soft candies, sandwich candies, etc.
Preserved fruit processing: the production of preserved fruit can make the shape and color of food raw materials fresher and taste better
Nuts processing: Nuts need to be processed with shells, and the equipment can evenly stir the sugar liquid to evenly apply it.
