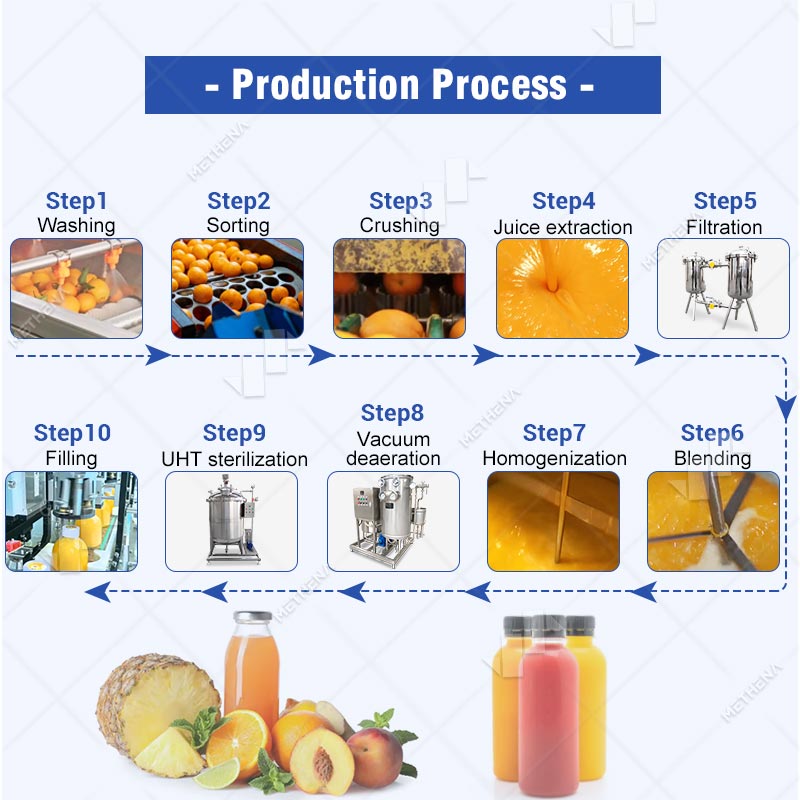

Methena fruit juice production line provides a complete solution for washing, crushing, extracting, blending, sterilizing, and filling fresh fruits, delivering high-yield, hygienic, and customizable juice production for beverage factories.”
Key attributes：
Brand Name: METHENA
Warranty: 1 Year
Core Component: PLC Control System
Weight: 3765kg
Dimension(L*W*H): 19915*1500*2840mm
Voltage: 220V/380V/415V/440V (Customizable)
Power: 34.18kw
Production Capacity: 2800-3300bottle/h
Juice Yield Rate: 70%-85% (Depending on Fruit)
Cleaning System: CIP Automatic Cleaning System
Sterilization Type: UHT Tubular Sterilization
OEM/ODM Service: Acceptable
Certification: ISO 9001, ISO 14001, ISO 45001, CE, BSCI, ETL

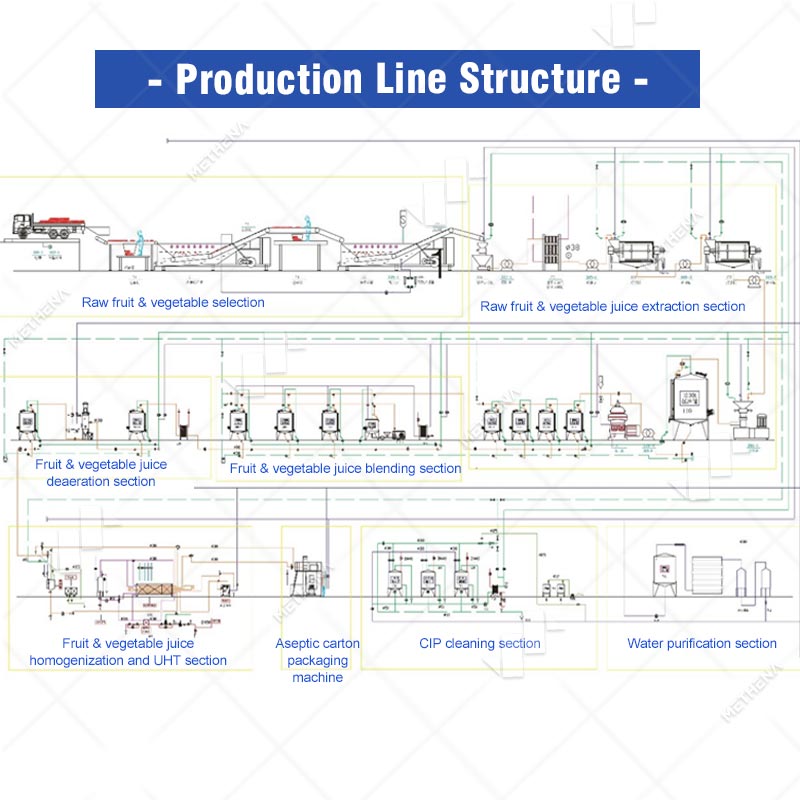

Our fruit juice production line provides a comprehensive and high-efficiency solution for transforming fresh fruit into premium bottled beverages, covering the entire process from washing and crushing to extraction, blending, sterilization, and automated packaging. As a fully integrated juice processing line, the system is engineered to maximize juice yield while preserving natural flavors and nutrients, making it ideal for large-scale, stable industrial manufacturing.
This versatile juice production line can be customized to produce clear juice, pulp juice, or concentrates, ensuring consistent product quality across various fruit types. Built with food-grade stainless steel and designed for easy maintenance, our juice beverage production line offers a reliable, hygienic, and scalable foundation for beverage factories seeking to meet high-output market demands.
Parameter：
Machine Name | Dimensions | Power | Weight | Quantity |
Bubble Washing Machine | 4000×1350×1450mm | 5.8kw | 300kg | 1 |
Vibrating Dehydrator | 1950×1135×1200mm | 0.08kw | ||

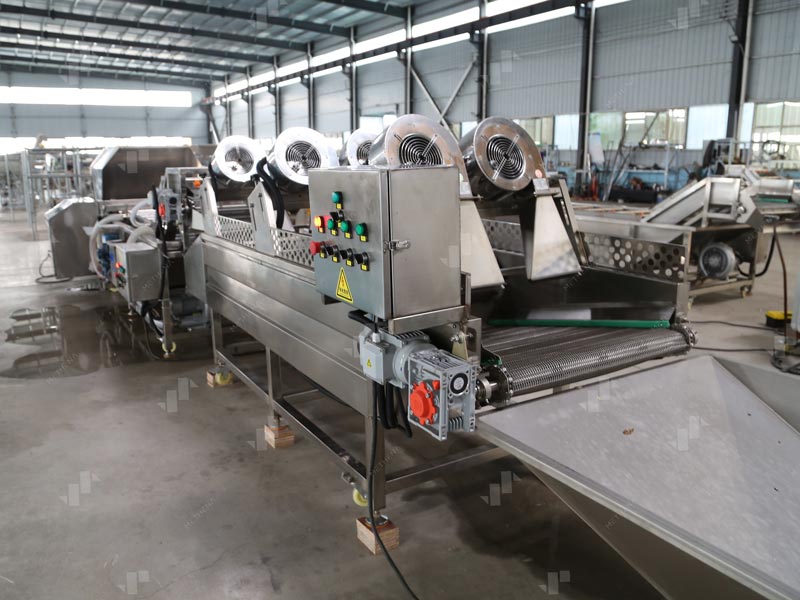

Air Dryer | 3000×1100×1500mm | 5.25kw | 500kg | |

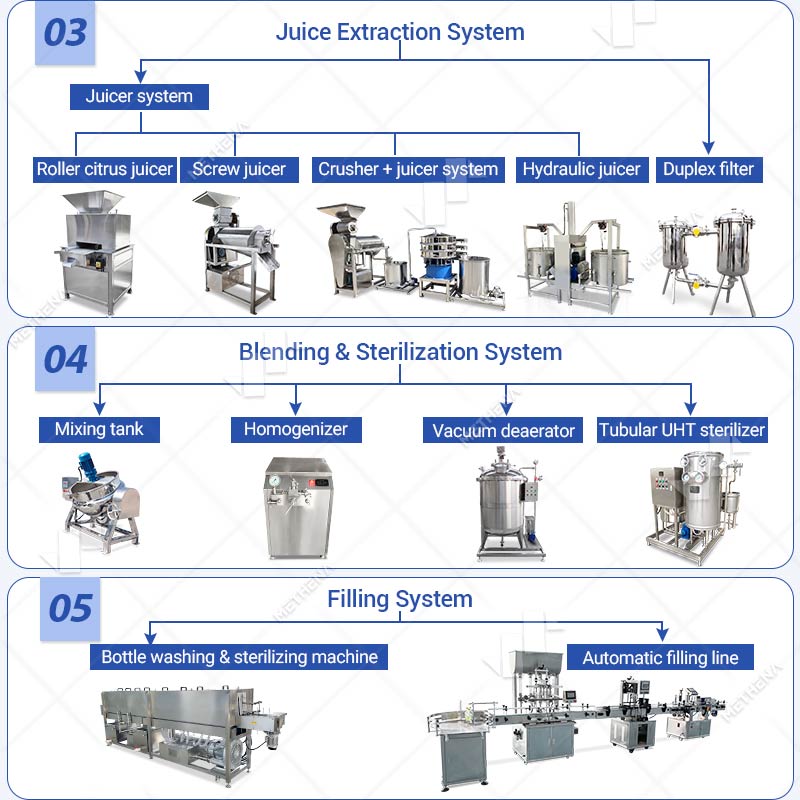

Juice Extractor | 950×400×1100mm | 3kw | 130kg | 2 |
Twin Filter | 900×300×800mm | 5m³/h | 30kg | 1 |
300L Sugar Boiling Kettle | 1550×1150×1450mm | 1.5kw | 175kg | |
Homogenizer | 1010×616×975mm | 4kw | 400kg | |
Vacuum Degassing Machine | 1035×750×2840mm | 5.2kw | 270kg | |
Tubular Sterilizer | 920×920×1400mm | 2.2kw | 280kg | |
Fully Automatic Filling Line | 3000×1500×2000mm | 5.5kw | 1000kg | |

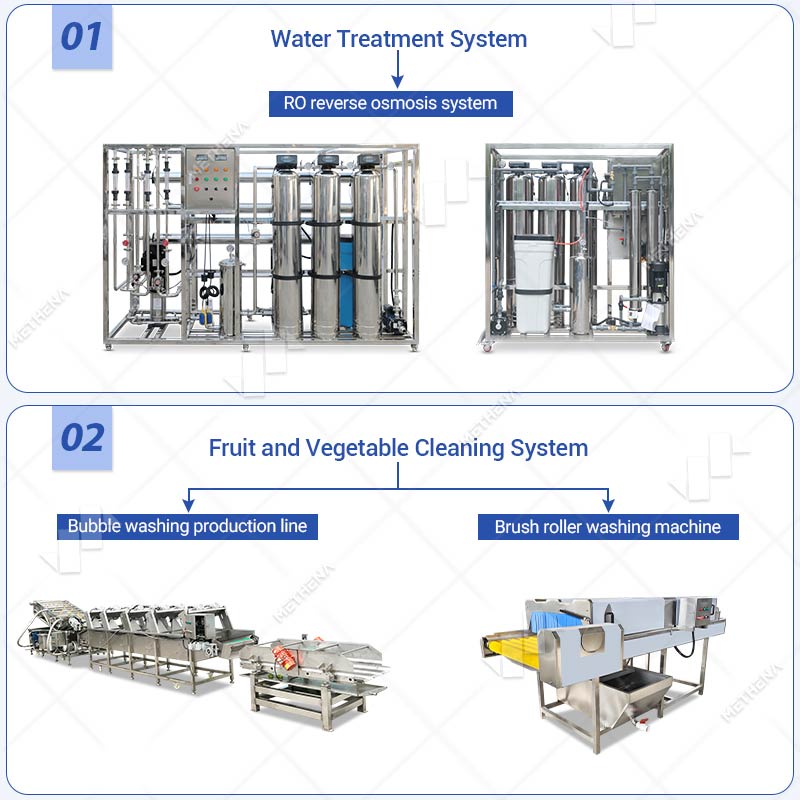

RO Reverse Osmosis Water System | 1600×700×1680mm | 1.65kw | 410kg |
High Efficiency & Continuous ProductionIntegrates washing, crushing, extraction, blending, sterilization, filling, and packaging into a seamless process for stable and large-scale production.
Maximized Juice YieldAdvanced extraction and homogenization modules ensure maximum juice recovery while preserving natural flavor and nutrients.
Versatile Product OptionsAdjustable system settings allow production of clear juice, pulp juice, or concentrated juice from various types of fruits.
Hygienic & Food-Safe DesignAll product-contact parts are made of food-grade stainless steel, complying with international food processing standards.
Customizable & ExpandableThe production line can be tailored to capacity and factory layout, with optional modules like aseptic filling, vacuum concentration, and CIP cleaning for future upgrades.
Easy Operation & MaintenanceUser-friendly design and automated controls simplify operation and reduce labor costs, while CIP cleaning and modular components make maintenance straightforward.
Beverage FactoriesIdeal for large-scale beverage production, including bottled fruit juices, smoothies, and flavored drinks.
Fruit Processing PlantsSuitable for companies that process fresh fruits into juice, puree, or concentrate for retail or industrial use.
Food & Beverage ManufacturersSupports production of ready-to-drink juices, juice blends, and mixed fruit beverages for supermarkets and distributors.
Hotel & Catering ServicesEnables hotels, resorts, and catering businesses to produce fresh juice in-house for restaurants, buffets, and events.
Cold-Pressed Juice BrandsSupports premium juice brands in producing cold-pressed or freshly extracted juices while maintaining nutrients and flavor.
Nutraceutical & Health Drink ProducersSuitable for manufacturers producing vitamin-enriched, functional, or fortified fruit juices for health-conscious consumers.
